Computerized Fabric Edge Cutting Machine
Detail produk:
| Tempat asal: | Guangdong, Tiongkok |
| Nama merek: | YUTENG |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Berat: | 750 kg | Komponen inti: | Plc, motor |
|---|---|---|---|
| Ukuran Mesin: | 3200*2200*2500mm | Lebar pemotongan: | 2400 Mm |
| Panjang pemotongan: | Min 30cm-Infinite | Kecepatan pemotongan: | Pemotongan vertikal 10m/mnt, pemotongan horizontal 5 dtk/potong |
| Berat mesin: | 600 kg | Kekuatan maksimal: | 1,8 kw |
| Voltase: | 380V/50Hz, 3-fase | Antarmuka PLC: | Layar sentuh berwarna 5 inci |
| Pemberian makan material: | Bilah tekanan sinkron | Desain Mesin: | Bentuk kotak, dioptimalkan |
| Model: | YTCM96-C | Jenis pemotongan: | Pemotongan silang, pemotongan, pemotongan tepi |
| Fase: | 3-fase | ||
| Menyoroti: | computerized fabric cutting machine,edge cutting machine for textiles,computerized fabric trimmer with warranty |
||
Deskripsi Produk

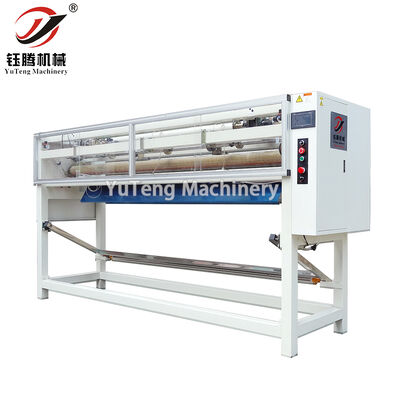

Computerized Fabric Edge Cutting Machine
Product Features
- 5-inch color touch screen PLC interface for easy operation
- CE-certified computer materials, electrical components, and motors for extended service life
- Electric length adjustment for both cutting length and width
- Synchronous pressure bar for even material feeding and smooth cutting, especially for thin material edge trimming
- Optimized box-shaped design improves running speed and cutting quality with higher efficiency
Applications
Ideal for seat covers, sofa cushions, quilt covers, bedcovers, home decoration, export packaging, bedding processing, and automatic cutting after sewing. Suitable for cross-cutting, slitting, edge cutting, quilting products, and composite products. Can also be used as a standalone machine.
Technical Specifications
| Model | YTCM96-C |
|---|---|
| Machine Dimensions (L×W×H) | 3200×2200×2500 mm |
| Cutting Width | 2400 mm (customizable) |
| Cutting Length | Minimum 30 cm to unlimited |
| Cutting Speed | Vertical cut: 10 m/min, Horizontal cut: 5 s/cut |
| Machine Weight | 600 kg |
| Maximum Power | 1.8 kW |
| Voltage | 380V/50HZ, 3-Phase |
* Customized models available to meet specific requirements

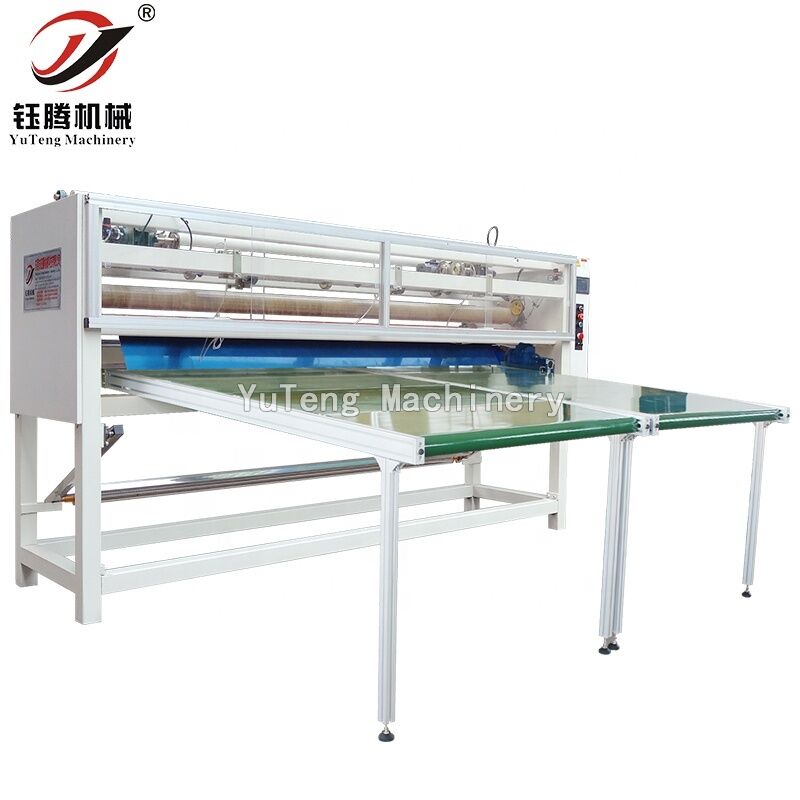

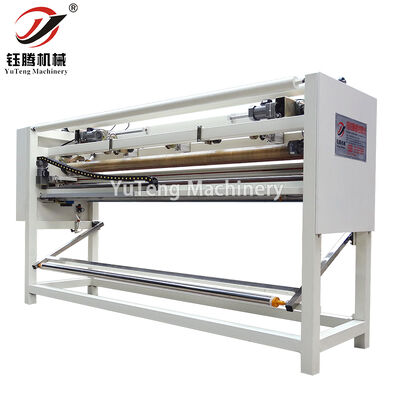

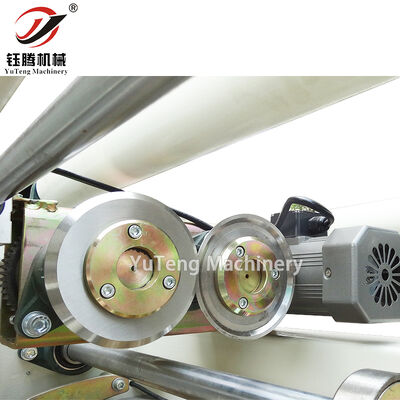

Product Images
