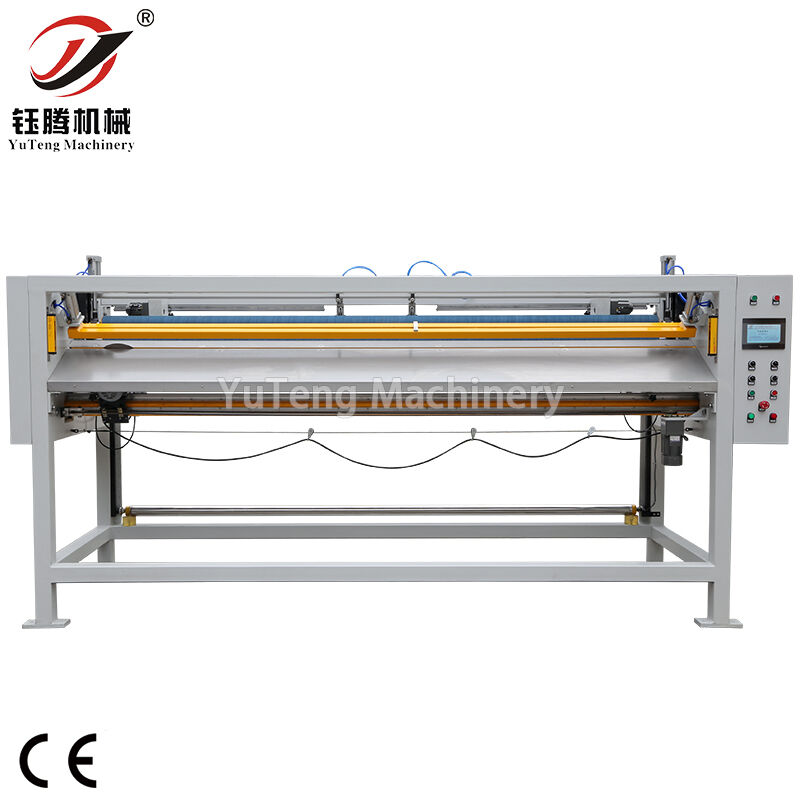

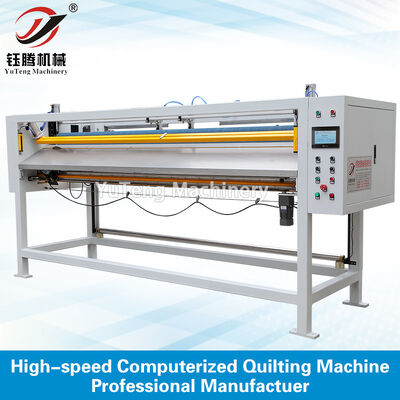

Computer Quilting Fabric Cutting Machine
Detail produk:
| Tempat asal: | Guangdong, Tiongkok |
| Nama merek: | YUTENG |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Berat: | 650kg | Komponen inti: | Plc, motor |
|---|---|---|---|
| Ukuran Layar Sentuh: | 7 " | Dimensi Maks X: | 2300mm |
| Dimensi maks Y: | 300mm | Catu Daya: | 380V/50Hz, 220V/60Hz |
| Dimensi mesin: | 3700mm*1100mm*1850mm | Tekanan Udara Operasi: | 0,4 ~ 0,8MPa |
| Ketebalan material: | 3-80mm | Kecepatan pemotongan: | 10 m/mnt |
| Kekuatan: | 2.6kw | Edge Trim: | Ya |
| celah: | Ya | Metode pelepasan: | Mekanik sabuk konveyor |
| Sistem Pakan: | Kontrol listrik | ||
| Menyoroti: | computer quilting fabric cutter,computerized cutting machine for quilting,fabric cutting machine with warranty |
||
Deskripsi Produk
Computer Quilting Fabric Cutting Machine
Product Features
- 7" touch screen for easy operation
- Hidden slitting blades for convenience and safety
- Electric controls for precise length and width cross-cutting
- Feed-in top with article points for even pressure distribution
- Y-dimension encoder for accurate length counting
- Conveyor belt mechanical discharge for efficient material handling
Purpose
This machine is designed for crosscutting, slitting, and edge trimming quilted fabric. It can operate in tandem with quilting machines and rolling devices, or function independently.
Technical Specifications
| Specification | Value |
|---|---|
| Max. X Dimension | 2300mm |
| Max. Y Dimension | 300mm |
| Power Supply | 380V/50HZ or 220V/60HZ |
| Machine Dimensions (L×W×H) | 3700mm × 1100mm × 1850mm |
| Weight | 1300kg |
| Operating Air Pressure | 0.4~0.8Mpa |
| Material Thickness | 3-80mm |
| Speed | 10 M/Min |
| Power | 2.6KW |

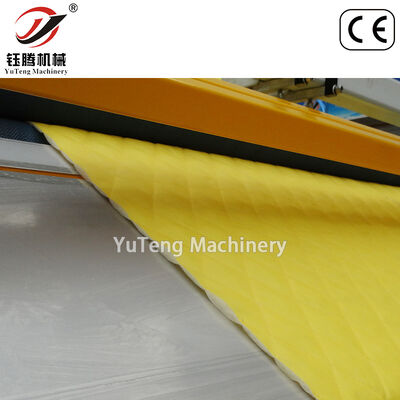

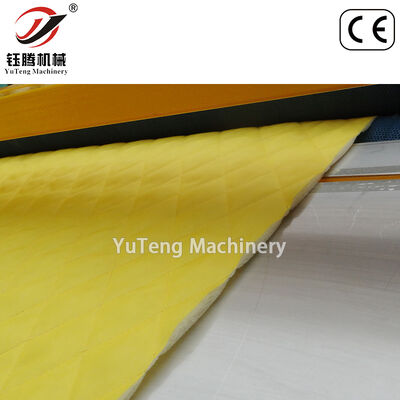

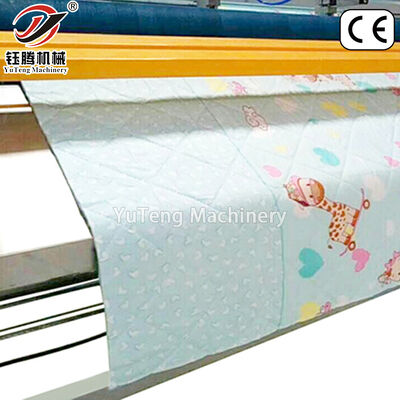

Product Images
Certifications
Company Information
Ordering Information
Delivery Time: Within 35 days upon receipt of 30% deposit
Payment Terms: T/T 30% deposit in advance, 70% balance before shipment
Delivery Terms: FOB, CIF, CFR, etc.
After-sale Service: Comprehensive support with one-year warranty
Customization: Available to meet specific client requirements
