Computerized panel cutting machine, Panel Cutter
Detail produk:
| Tempat asal: | Guangdong, Tiongkok |
| Nama merek: | YuTeng Machinery |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Berat: | 1150 kg | Dimensi: | 3800x1280x2300mm |
|---|---|---|---|
| Panjang pemotongan: | 600-2100 mm atau tidak terbatas | Lebar pemotongan: | 80-2600mm |
| Ketebalan: | 60 mm | kecepatan: | 10 m/mnt |
| Kekuatan: | 3.2KW | Tekanan udara: | 0,4-0,8 MPa |
| Voltase: | 380V/50HZ,220V/60HZ,3 Fase | Ukuran Layar: | 7 inci |
| Mode Operasi: | Sensor fotolistrik, Encoder | Tipe bilah: | Pisau ganda |
| Komponen inti: | Plc, motor | Ukuran wadah: | 20gp |
| Papan geser: | Ya | ||
| Menyoroti: | computerized panel cutting machine with warranty,panel cutter for precise cuts,computerized cutting machine for panels |
||
Deskripsi Produk

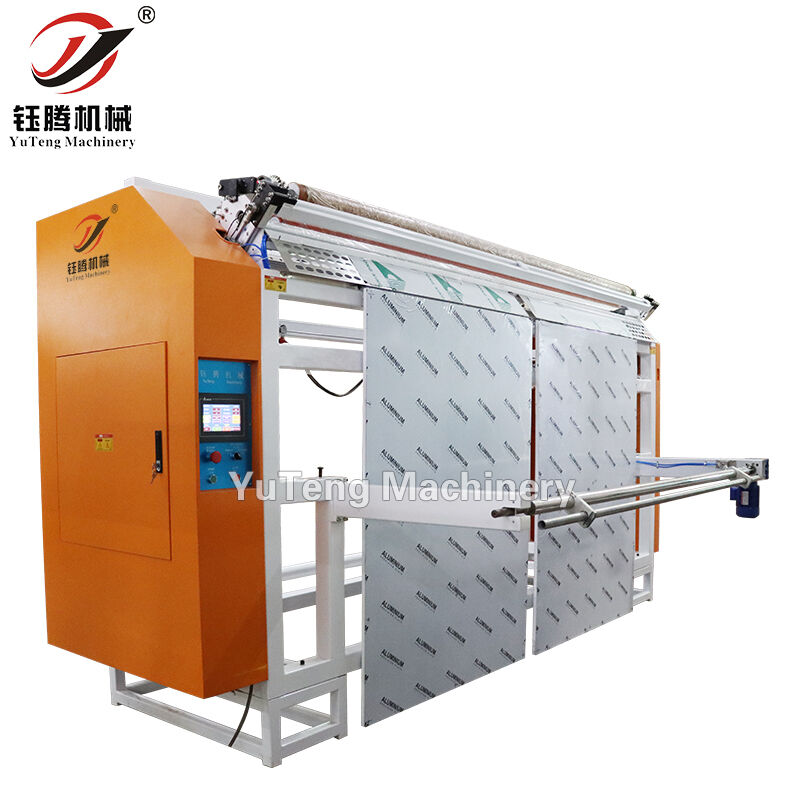

Computerized Panel Cutting Machine (Panel Cutter)
Technical Specifications
| Dimension (L x W x H) | 3800 x 1280 x 2300 mm |
| Effective cutting length | 600-2100 mm or unlimited |
| Effective cutting width | 80-2600 mm |
| Thickness | 60 mm |
| Speed | 10 m/min |
| Power | 3.2 KW |
| Air pressure | 0.4-0.8 Mpa |
| Voltage | 380V/50HZ, 220V/60HZ, 3-Phase |
| Weight | 1150 KG |
Key Features
- User-friendly operation via 7-inch touch screen interface
- Dual operation modes: photoelectric sensor and encoder for versatile material cutting

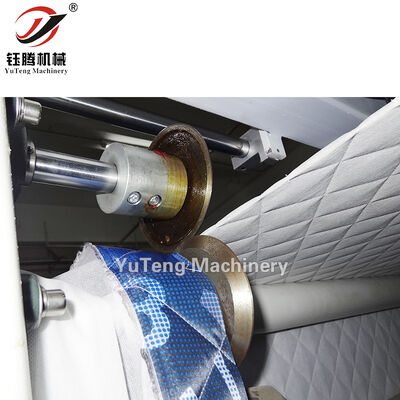

- Double-blade system ensures precise edge cutting

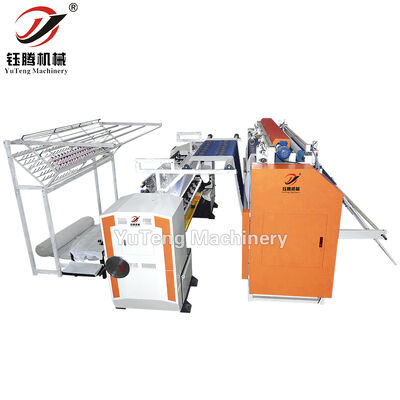

- Compatible with quilting machines or standalone operation
- Space-saving sliding board design optimizes factory floor space
- Compact shipping design fits in one 20GP container with quilting machine

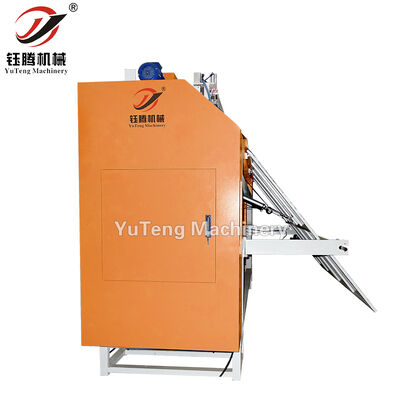

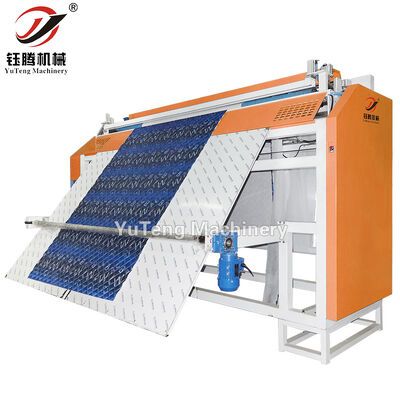

Machine Gallery
Manufacturer Information
